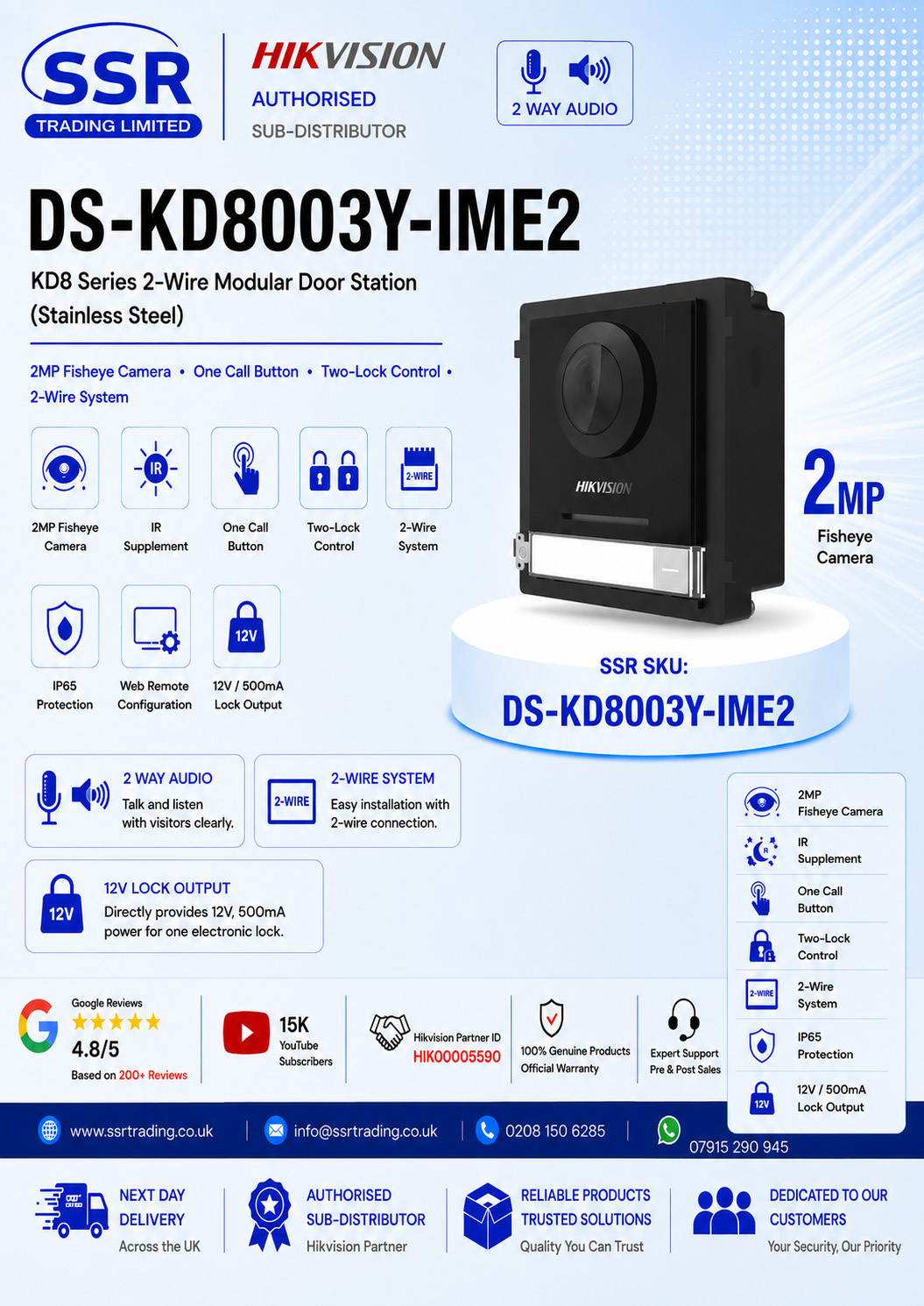

DS-KD8003Y-IME2 Hikvision 2 Wire Main Unit of Modular Door Station - 2MP Fisheye Camera with IR Supplement
Hikvision DS‑KD8003Y‑IME2 is a compact, modular video intercom door station designed for secure, reliable, and user‑friendly access control. Featuring a high‑definition camera with wide dynamic range, noise suppression, and echo cancellation, it ensures clear communication and sharp visuals in diverse lighting conditions. Its durable, weather‑resistant design supports outdoor installation, while modular expansion allows integration with multiple Hikvision indoor stations and accessories. With support for remote unlocking, SIP protocol, and seamless connectivity to NVRs and mobile apps, the DS‑KD8003Y‑IME2 delivers professional‑grade performance for residential, commercial, and industrial security environments, enhancing safety and convenience with advanced smart features.
The DS-KD8003Y-IME2 is a two-wire modular door station from Hikvision. Here are some of its key features:
-
Camera:-
2 MP fisheye camera with IR supplement -
Horizontal FOV: 146°, Vertical FOV: 82° -
Wide dynamic range (WDR) support -
Video compression standard: H.264
-
-
Audio:-
Built-in omnidirectional microphone -
Built-in loudspeaker -
Audio compression standards: G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1 -
Noise suppression and echo cancellation
-
-
Interfaces:-
4 alarm inputs (2 exit buttons and 2 door contacts by default) -
2 relays for lock control (max. 30 VDC, 2 A) -
RS-485 interface for Hikvision's sub-module communication -
Two-wire IP interface
-
-
General: -
IP65 protection level -
Working temperature: -40° C to 60° C (-22° F to 140° F) -
Working humidity: 10% to 90% -
Dimensions: 100 mm × 98 mm × 42 mm -
Power consumption: ≤ 4 W -
Powered by KAD704Y or KAD706Y series distributor
