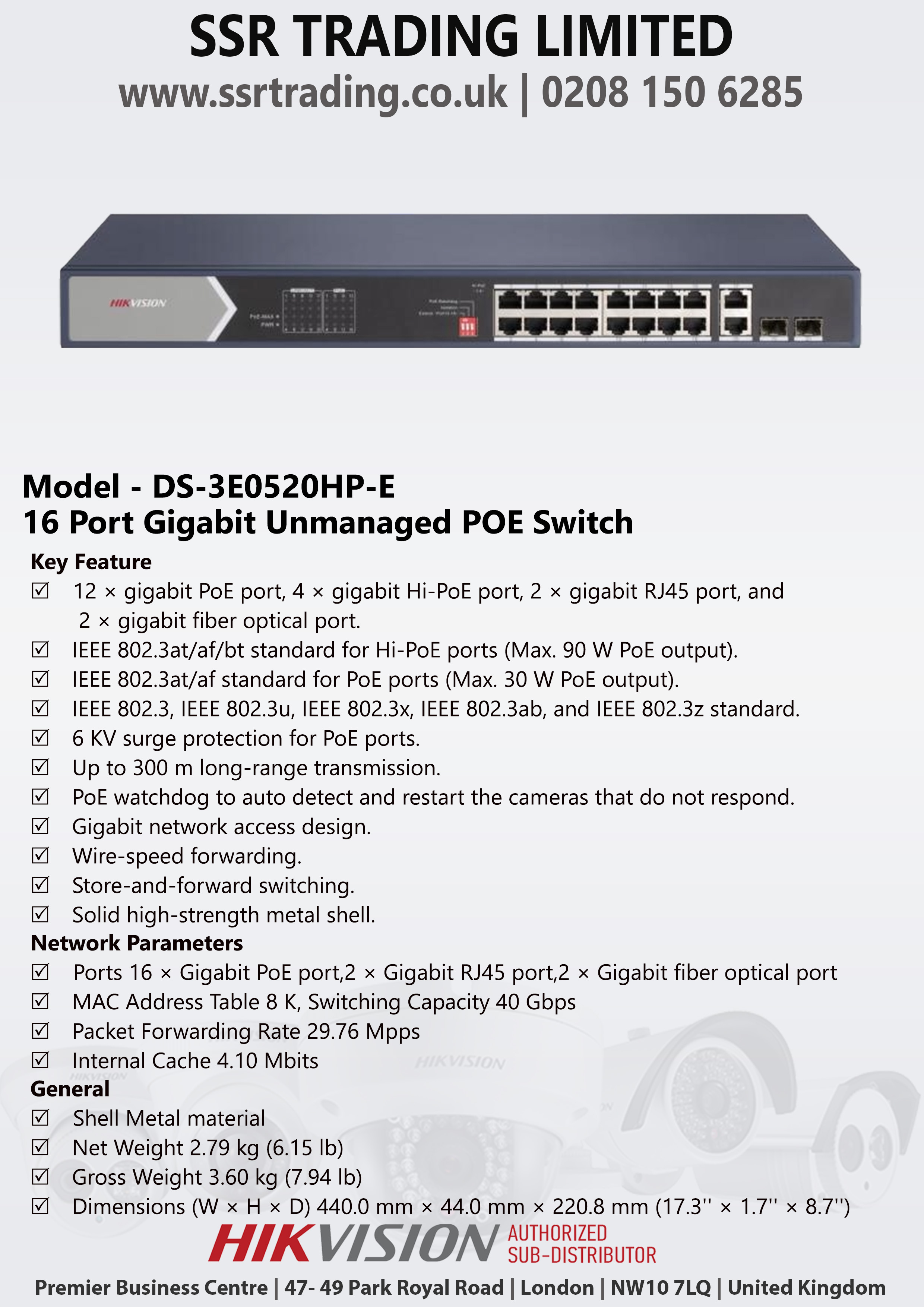

Hikvision DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch
EAN/GTIN: 6941264031628
Hikvision DS‑3E0520HP‑E is a 20‑port Gigabit PoE switch designed for reliable surveillance and networking applications. Featuring 16 PoE ports with IEEE 802.3af/at compliance, it delivers stable power and data transmission for IP cameras and other devices. With a total PoE budget of 200W, it ensures efficient energy distribution while supporting long‑distance transmission up to 250 meters in extend mode. Its fanless design provides silent operation, and robust metal housing enhances durability. Ideal for small to medium‑scale CCTV setups, the DS‑3E0520HP‑E offers VLAN support, intelligent power management, and plug‑and‑play installation for seamless network expansion.
Key Features:
-
12 × gigabit PoE port, 4 × gigabit Hi-PoE port, 2 × gigabit RJ45 port, and 2 × gigabit fiber optical port. -
IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output). -
IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). -
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. -
6 KV surge protection for PoE ports. -
Up to 300 m long-range transmission. -
PoE watchdog to auto detect and restart the cameras that do not respond. -
Port isolation to improve network security. -
Gigabit network access design. -
Wire-speed forwarding. -
Store-and-forward switching. -
Solid high-strength metal shell.
