Product Description

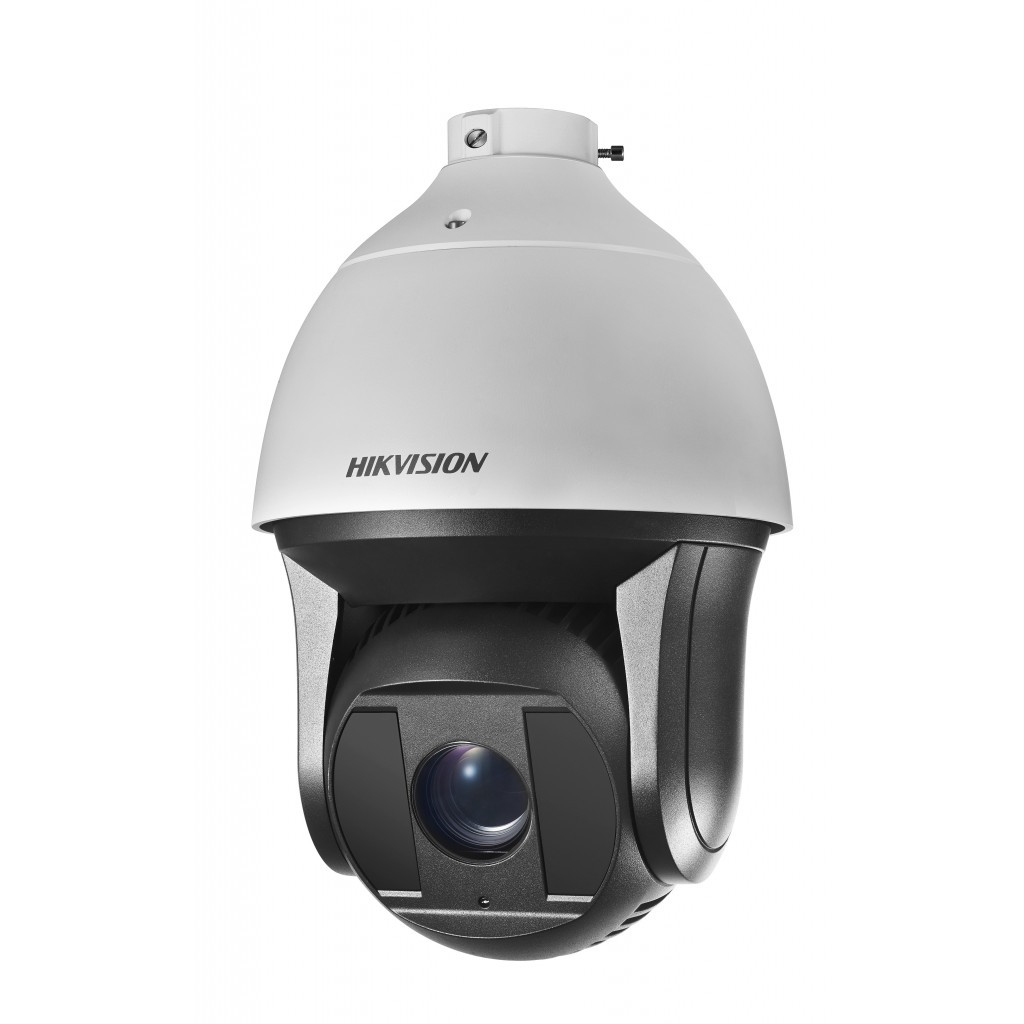

Hikvision 4K Smart IR PTZ Camera DS-2DF8836IV-AEL
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.9" HD CMOS sensor |
| Effective Pixels: | | | 4096x2160 |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | F1.5, 50IRE, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR |
| White Balance: | | | Auto / Manual |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | Support |
| Shutter Time: | | | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 24 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 5.7-205.2mm, 36x |
| Zoom Speed: | | | Approx.7.4s(Optical Wide-Tele) |
| Angle of View: | | | 56.8-2.02 degree (Wide-Tele) |
| Minimum Working Distance: | | | 10-1500mm(Wide-Tele) |
| Aperture Range: | | | F1.55~F4.8 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s |
| Tilt Range: | | | -20°~90°(Auto Flip) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Freeze Frame: | | | Support |
| Smart-tracking: | | | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
| Wiper: | | | Optional |
| Infrared | ||
| IR irradiation distance: | | | 200m |
| IR irradiation angle: | | | Adjustable by zoom |
| Alarm | ||
| Alarm Input: | | | 7 Inputs |
| Alarm Output: | | | 2 |
| Alarm Actions: | | | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Main Stream: | | | 50Hz:25fps(4096×2160, 3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720) 60Hz:24fps(4096×2160), 30fps(3840×2160, 3072×1728, 2560×1440, 1920×1080, 1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | | | 50Hz: 25fps(704×576, 640×480, 352×288); 60Hz: 30fps(704×480, 640×480, 352×240) |
| Image Compression: | | | H.264 / MJPEG |
| ROI encoding: | | | Support 6 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Audio Mode: | | | OFF/Audio input/Audio output |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| General | ||
| RS-485 Protocols: | | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English |
| Power Supply: | | | High-PoE&24 VAC, Max.60W |
| Power Consumption: | | | Max.60W |
| Working Temperature/Humidity: | | | -40°C ~ 65°C (-40°F ~ 149°F) |
| Protection Level: | | | IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Dimensions: | | | Φ266.6(mm)×435(mm) |
| Weight (approx.): | | | 8kg (approx.) |
| Mount Option: | | | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
